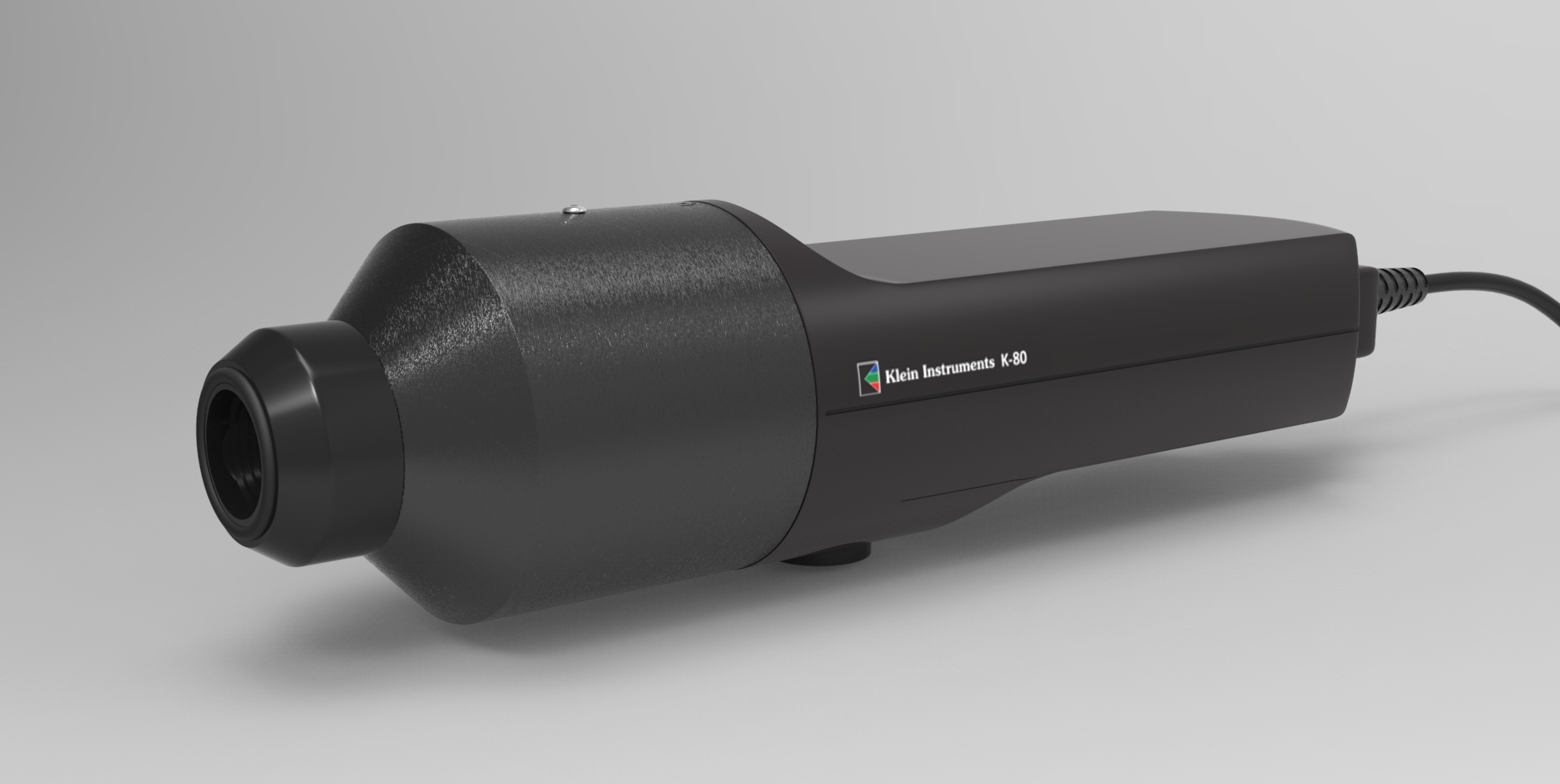

K-80G

K-80G

List: $6,400.00 Sale: $4,999.00

  • Colorimeter for small displays
  • 9mm aperture size
  • FFT flickermeter
  • Small, light-weight design
  • Comes with Klein carrying case, tripod, lens guard, install disc, and certificate of calibration

ENHANCED Optics

The Klein K-80G Colorimeter has been upgraded with enhanced optics, giving it a 16X advantage in sensitivity over the previous K-8. The K-80G continues the Klein tradition of high speed, versatile, mobile and accurate colorimeters that Klein has come to be known for. The K-80G can be used on any display size, not just small ones, although the smaller measurement area makes it ideal for hard to measure screen sizes.


WINNING DESIGN

Like all Klein colorimeters, the K-80G is ruggedly constructed with machined aluminum and high impact plastic. The K-80G’s auto ranging is solid state, and the housing is impact resistant to hold up to the 24 hours a day, 7 days a week usage that the display manufacturers require. The K-80G’s compact size and light weight make transportation convenient. It is also fitted with a universal tripod mount for easy positioning and integration into workflows.



EXCEPTIONALLY ACCURATE FILTERS

For maximum accuracy, not only is the f1’ of Y critical, but the accuracy of X and Z as well. Each diode has specially layered absorption filters designed for maximum color accuracy. Klein colorimeters are also rigorously tested to ensure that each device is thermally stable with an operating temperature range of 15-35 C.


Versatility

The Klein K-80G provides industry standard colorimetetry analysis, as well as the capability to measure flicker. The probe can measure color and flicker on TVs, LED backlit displays, CRTs, phones, tablets and more. The Klein K-80G can also measure and log flashes from various direct light sources. The K-80G is a lensed alternative to the K-8, that is 12x as sensitive.


FLICKER

The Klein K-80G is also a fully functioning FFT (Fast Fourier Transform) flicker meter. The probe measures and integrates Y data in the head, streams in real time to the PC, and then the FFT is performed. The Klein K-80G can measure regular flicker between 1-150Hz. Multiple methods for displaying flicker data including JEITA, VESA, and Contrast methods are selectable in the software. The Klein K-80G can be used to analyze any luminance source, including the common refresh-rate flicker in monitors, and random flashes caused by the transmission of current variations through solid state devices (LEDs). All flicker information can be logged and reported with Klein Chromasurf.
